CCS 2000

Integrated Command and Control System

Typical Applications:

• Control center situation awareness
• Remote/Mobile control & monitor
• Mobile command & control
• Telemetry & tracking
• Launch & fire control
• Automated test
• Process control
• Training simulation
• Robot cell control
• Communications gateway

Comes with CCTK Software:

• Multi-stream, multi-format I/O
• Stand-alone or multi-user operation
• Commanding
• Real-time graphical visualization
• Integrated simulation environment
• Archival, retrieval, and playback
• XML configuration database
• System customization tools
• Modular data processing
• Network/Internet data distribution
• Time Sync & NTP Server capability
• Built-in graphical tools: Quick-Look, Data Analysis, & Event Messaging

CCTK Product Options:

• Developer's Environment
• GIS Display Environment
• Web Server
• RangeNet^TM
• T-Zero^TM Sequencer

Configuration Options:

• Linux OS: Red Hat or C2OS
• DSLT tape archive
• Hot swappable power supplies and disk drives
• Extended graphics
• Rack Enclosure
• Rack mounted Keyboard tray & flip up flat screen monitor
• Workstation or Rackmount Server
• Ruggedized Portable Computer

Device and Sensor Interfaces:

• SCADA: OPC/Fieldbus/Interbus
• Peer - Peer Networks
• RADAR - Sync serial acquisition and generation
• Cameras
• Unattended Ground Sensors
• Environmental Sensors
• PCM telemetry bit sync, frame sync, decom, & simulator
• IRIG UTC (GPS opt), NTP Server
• (Contact CCT for more interface options)

Reference Material:

• CCS 2000 Spec Sheet
• Interface Options
• Product Customization Services
• Turnkey Systems Services
• Training

CCS 2000 (New Multi-Core) Typical Hardware Features:

• Rugged 3U Chassis
• Dual Xeon Dual or Quad Core CPU w/1333Mhz System Bus
• 4GB DDR333 ECC Mem
• 2 x Integrated Gigabit NICs
• Up to 8x 300GB 15K Removable Disk Array.s (SAS or SATA)
• Dual Head Video Controller
• 1 (x16) & 1 (x4 in x16 PCI Express slot
• 3x 64 Bit PCI-X Full-height, Full-length Expansion Slot (2) 133Mhz, (1) 100Mhz
• 1x 32 Bit PCI 32 Bit 33Mhz Full-height, Full-length Expansion Slot
• 760W Triple-Redundant Power Supply
• 8 x 1" Hot-swappable Drive Bays
• 2 x 5.25" Peripheral Drive Bays
• 1 x Dual Layer DVD-RW Drive
• 2 Year Warranty

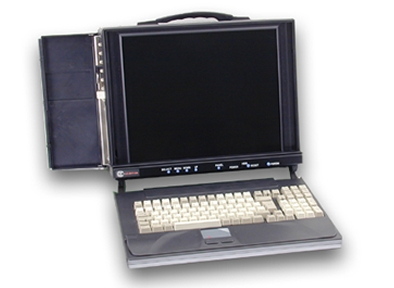

PCCS 2000 Typical Hardware Features:

• Rugged Portable Configuration
• Dual Xeon 3.06 GHz CPU w/533Mhz System Bus
• 1024MB PC-2700 ECC DDR DIM Mem
• 1 x Gigabit, 1 x 10/100M Ethernet
• 3 x 36GB 15K SCSI Ultra 320 Disk Drives - RAID 5
• Built-in 17.1" 1280x1024 TFT Flat Display
• Aopen Gforce 4 MX440 SE 64MB Graphic Controller
• 3x 64 Bit PCI-X Full-height, Full-length Expansion Slot (1) 133Mhz, (2) 100Mhz
• 3x 32 Bit PCI 32 Bit 33Mhz Full-height, Full-length Expansion Slot
• 760W Triple-Redundant Power Supply
• 8 x 1" SCA Ultra320/160 SCSI Hot-swappable Drive Bays
• 2 x 5.25" Peripheral Drive Bays
• 1 x CDRW Slimline Drive
• Rugged wheeled cargo case
• 1 Year Warranty

CCTK Features Summary:

The CCTK™ software is off-the-shelf middleware designed to integrate your distributed operations for real-time shared situation awareness and reliable operation. CCTK is the core of CCT's Command and Control Product Line.

The scalable software architecture is suitable for embedded, headless, client/server, or network distributed operation capable of handling millions of data, command, event, and message transactions.

Built with highly modular services that can be arranged much like Lego™ building blocks, CCTK dramatically reduces the effort required to build mission critical command and control systems. Using technology developed for space mission control, CCTK converts large volumes of data from a variety of sources in to usable decision-support information that can be acted on by autonomous applications or human operators. With this solution, you can manage your most complex operations more reliably with fewer operators and less technology.
